COMBINED HEATING OIL HEATER PNK-1.9

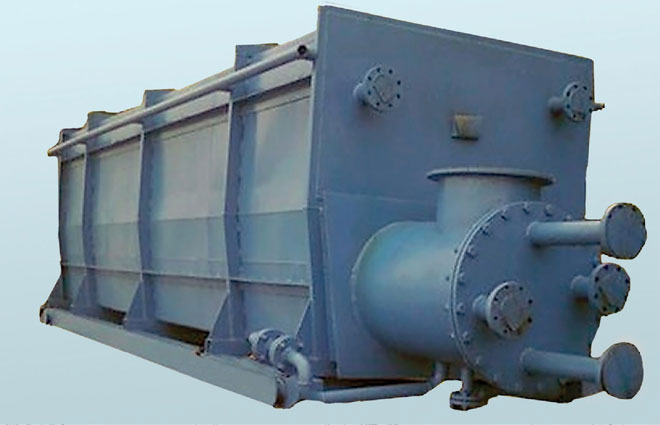

 PNK-1.9 general layout.

GENERAL DATA

Combined oil heater (further PNK-1.9) applied for heating oil of various viscosity and oil emulsion in oil processing and transportation systems.

features

Heating temperature can reach up to 110° С, therefore the heater can be used in heavy oil processing as well as in technologies of oil and gas condensate stabilization.

Climatic modification – U, HL by GOST 15150-69.

Placement category –1 by GOST 15150-69.

COMMON SPECIFICATIONS

Parameter

Value

 Nominal heat release, MW (Gcal/hr)

1.9 (1.6)

Productivity, kg/sec (t/day), within

11.5…29

(1000…2500)

 Product temperature,  °С:

 - furnace input, min

 - furnace output

+5

+110

 Efficiency factor, %, max

85

 Intermediate heating carrier

sweet water, ethylene glycol solution, other non-flammable liquids

Coil pressure, MPa (kgf/cm2):

 - working, max;

 - design;

 - hydro tested.

6.3 (63)

6.3 (63)

8.2 (82)

 Heated medium parameters

 - title;

 - density at 20°С, kg/m3, max;

 - viscosity at 20°С, cSt

 - hydrogen sulphide content (H2S), % mol., max;

 - carbon dioxide content (СО2), % mol., max.

oil, oilemulsion

900

100

0,01

1,0

 Fuel parameters:

 - title

 - hydrogen sulphide content (H2S), mass, % max

 - combustion heat, MJ/m3, within

 - pressure at fuel treating block inlet, MPa (kgf/cm2) within

 - pressure before burner, MPa (kgf/cm2)

 - fuel gas consumtion, m3/hr, max

natural or associated gas

0.002

35…60

0.2…0.4 (2.0…4.0)

0.03 (0.3)

235

 Mass, kg, max:

 - heater in idle state;

 - ventilation set block;

 - fuel treating block.

11800

1000

700

Service life, years, min

10

 Average lifetime before capital repair, years

3.5



PNK-1.9 basic assembly units:

1) heater shell;

2) ventilation set block;

3) fuel treating cabinet;

4) burner device;

PNK-1.9 general drawing.

Chokes and Flanges Table

Ref

Designation

Qty

Nominal
Pressure, MPa (kgf/cm2)

DN, mm

A1

Product inlet

1

6.3 (63)

100

Б1

Product outlet

1

6.3 (63)

100

В1

Fume gas outlet

1

-

400

Г1

Fuel gas inlet

1

0.6 (6)

50

Д1

Purge stack

1

0.3 (3)

20

Е1

Purge stack

1

0.3 (3)

50

Ж1

Heat carrier fill-in choke

1

-

100

З1

Vessel drainage

1

-

50

И1

Condensate bleed choke

1

0.1 (1)

25

К1

Firefighting choke

1

0.6 (6)

50
