OIL HEATING FURNACE PT-4-64Zh

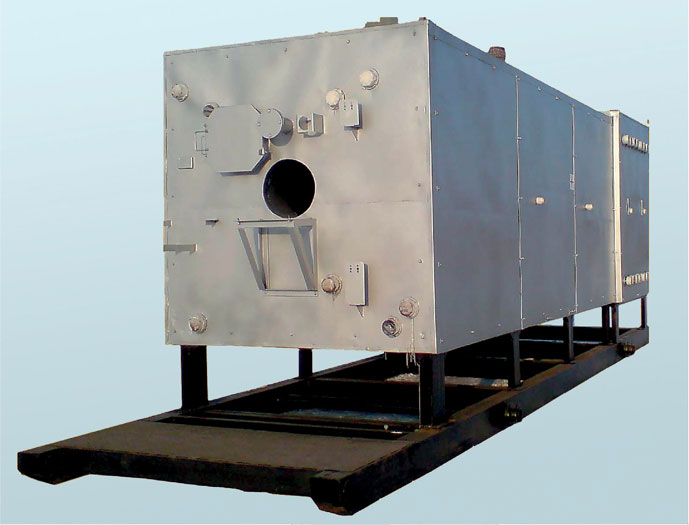

PT-4-64Zh heat exchanging chamber general layout.

GENERAL DATA

Automated heating furnace PT-4-64Zh designed for heating oil and oil emulsions during processing and transportation stages.

features

Climatic modification – U, HL by GOST 15150-69.

Placement category –1 by GOST15150-69.


COMMON SPECIFICATIONS

Parameter

Value

 Nominal heat release, MW

4.65

 Oil emulsion related productivity, t/hr (kg/sec), within

100…180

(34.7…69.5)

 Product temperature, °С:

 - furnace input, min

- furnace output, max

+5

+90

 Efficiency factor, %, max

80

Coil pressure, MPa (kgf/cm2):

 - working, max

 - designed

 - hydro tested

6.3 (63)

6.3 (63)

8.2 (82)

Fuel oil parameters:

 - combustion heat, MJ/m2, within

 - density at 20 °С kg/m3, max

 - viscosity, m2/sec (cSt)

 - hydrogen sulphide H2S, % mole, max

 - carbon dioxide СО2, % mole, max

 - operating temperature, K (°С), max

 - heater inlet pressure, MPa (kgf/cm2), max

 - pressure before burner, MPa (kgf/cm2), max

 - fuel oil consumption, kg/hr, within

40-42

850

20 10 (20)

0.01

1.0

323 (50)

4.0 (40)

3.5 (35)

470

 Mass, kg, max:

 - furnace (idle state)

25800

Service life, years, min

10

 Average lifetime before capital repair, years

3.5


PP-4-64Zh basic assembly units:

1) heater shell;

2) ventilation set block;

3) burner device;

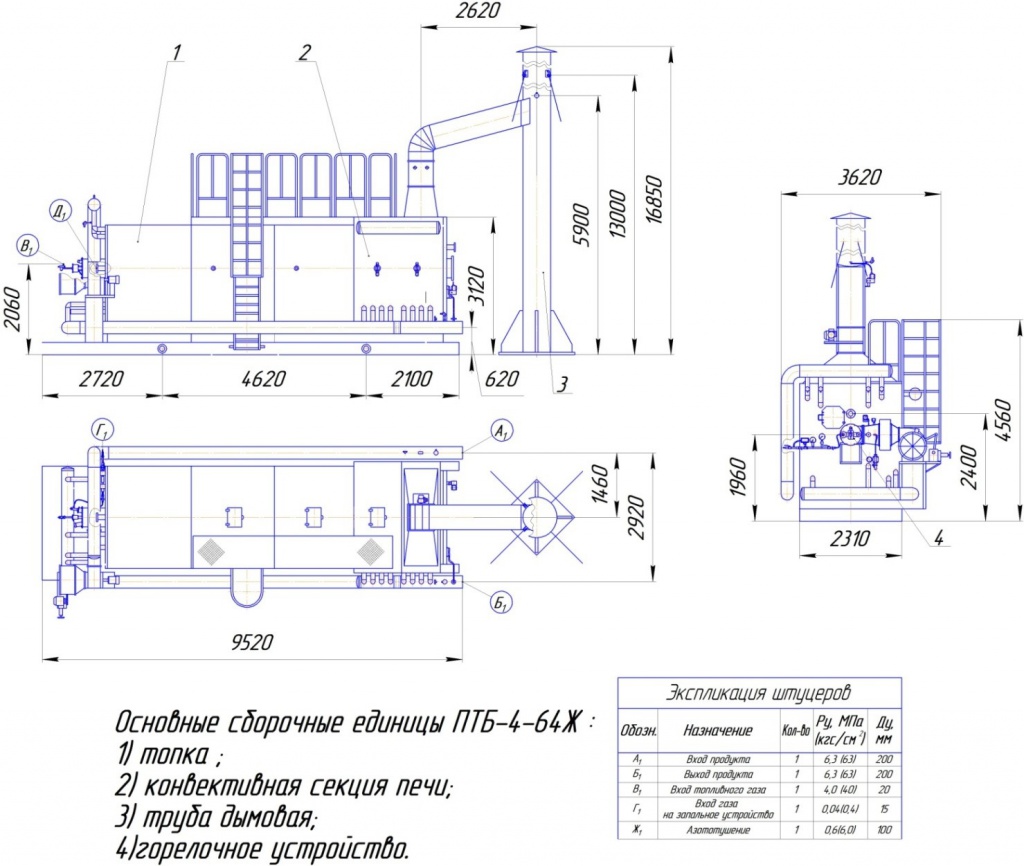

PT-4-64Zh general drawing.

Chokes and Flanges Table

Ref

Designation

Qty

Nominal
Pressure, MPa (kgf/cm2)

DN, mm

A1

Product inlet

1

6.3 (63)

200

Б1

Product outlet

1

6.3 (63)

200

В1

Fuel gas inlet

1

4.0 (40)

20

Г1

Burning device fuel gas inlet

1

0.04 (0.4)

15

Ж1

Nitrogen blanking

1

0.6 (6.0)

100
